This tutorial will explain the process of developing T-MAX film as a simple step-by-step walkthrough. It’s a great introduction to understanding how film development works, and how you can improve your photography by giving the process a try!
I strongly suggest that reading through the developing process before trying it. Chemicals require specific times and it is difficult to keep track of everything if you are not prepared and somewhat familiar to the process.

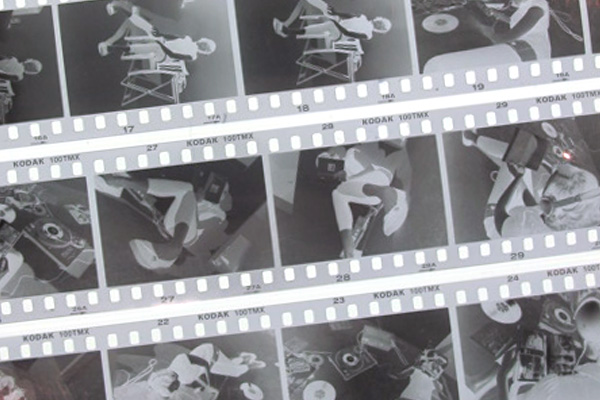

I choose T-MAX 100 because it has a very fine grain and it is the black and white developing process that I have had the best results with. This is what fully developed dense negatives look like. If results differ we will cover fogged flawed or thin negatives at the end of this tutorial.

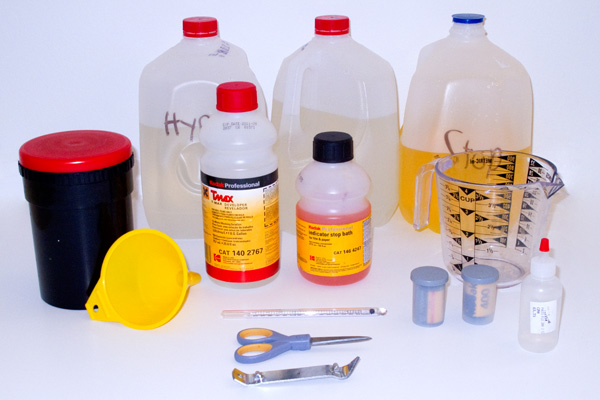

Step 1: Gather Supplies
- 1-2 rolls of exposed T-MAX film
- Developing tank
- Can opener
- Beaker or measuring cup
- Containers (for mixed chemicals)
- Negative carrier
- 3 Containers for mixing chemicals
- Kodak T-MAX Developer
- Stop Bath
- Rapid fixer with hardening agent
- Hypo Clearing Agent (HCA)
- Photo Flo

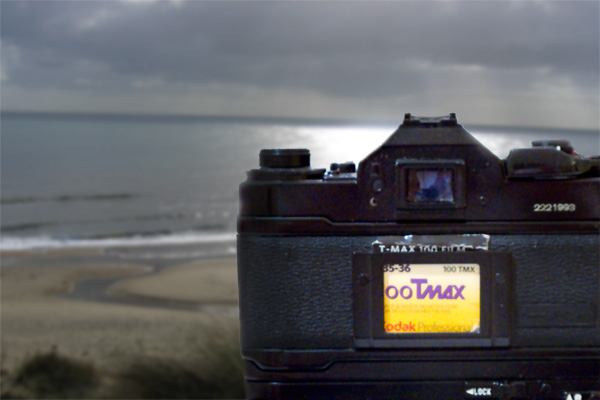

Step 2: Load, Expose, Unload the Camera
It is important to remember the film is ISO 100 so make sure there is a strong light source for your photos. A tripod is recommended to take advantage of low shutter speeds. T-MAX is known to be unforgiving with incorrect exposure so bracketing is worthwhile.
Step 3: Mixing the Chemicals
Once the film has been exposed and the supplies have been gathered, it is time to mix the chemicals.
Start by mixing the developer at a ratio of one part developer for four parts water (1:4). It takes about 10oz of this mixture for each reel that will be developed. In most cases, two reels get developed at a time. Only mix as much developer the tank requires (don’t premix and store). Once T-MAX is diluted it is important to regulate the temperature at 72º.

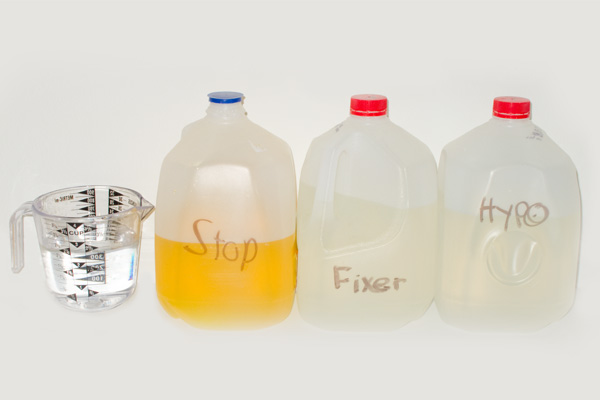

Next, mix the stop bath. The stop bath should be diluted and stored in excess for later use. Mix with water at a ratio of 1:64. (stop ratio varies depending on the brand, it is recommended you second check the directions).
Fixer and Hypo Clearing Agent (HCA) should be mixed according to the package instructions. Powder fixers often come with the hardener included in one package. Other liquid fixers require mixing of 2 elements. Fixer can be reused so keep it in a sealed container. HCA can be reused, but because it is difficult to determine when it is getting weak, some photographers will discard it after it has been in the developing tank.
Step 4: Light Proof a Room
Light-proofing a room is one of the steps that is easiest to make mistakes. There can be no visible light, not a red or amber safe-light. It is a good idea to start by bathroom or a laundry room with no windows. Use masking tape, foam weather stripping, towels or rags to block any light that may be spill into the work area.
Let your eyes adjust for a few minutes to be sure that there nothing visible. Remember to get all the cracks where light might get in. Both of these photos show a door with enough light getting through to fog your negatives. At first it would seem that the door on the right is light safe but once your eves adjust there is still a crack of light getting through.
Step 5: Open the Film Canister
Once you have found a light-safe a spot, get the developing tank, reels, film, a bottle opener and a pair of scissors.

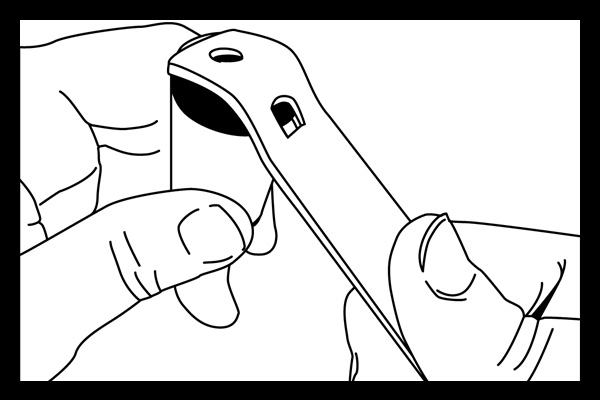

Turn off all lights and use the can opener to pry the top off the film canister. (It is not a bad idea to make a second check for any sources of light before this step)
Step 6: Take the Film Out of the Canister
Touching the emulsion side of the film will affect the chemicals in the developing process, so try to remove the film without making any contact with the film itself. Holding only the plastic knob that sticks out of the canister, pull the film out of the canister. The film will unravel but try not to let it touch the ground.
Step 7: Even Off the End of the Film
Without touching the emulsion side of the film, use your thumb and forefinger to grip the film by the edges and feel toward the end of the film. The end of your film has no exposures on it, so it is safe to touch. Using your fingers as a guide, find your scissors and cut the ‘tongue’ off your film.
Step 8: Load the Reel
Once the film has an even end, it can be loaded on the reel. Take a reel and feed the first piece of film onto it. It may resist at first but once it passes the ball bearing it seems to pop onto the track. (Remember not to touch the emulsion in areas where the film was exposed).

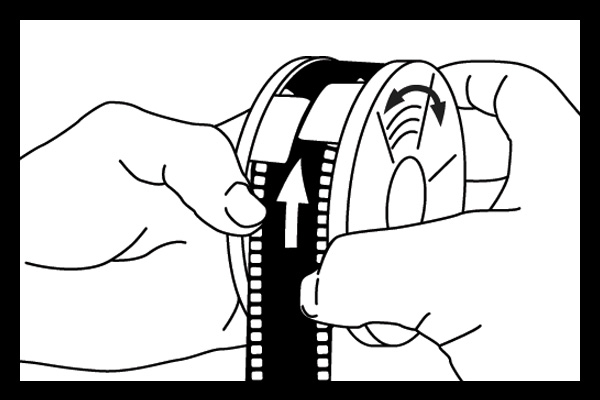

Most plastic reels have a self feeding oscillating mechanism that allows the user to feed the film without touching the film. Rotate one side of the reel about 1/8th of a turn and return it to it’s original position, as this action is repeated the film will wind around the track without any significant problems.
Step 9: Cut Off the Plastic End of the Reel

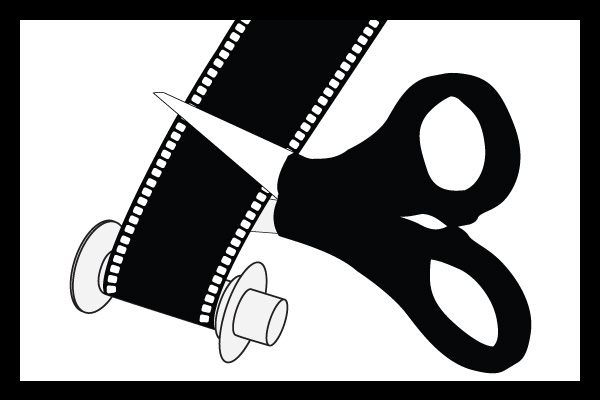

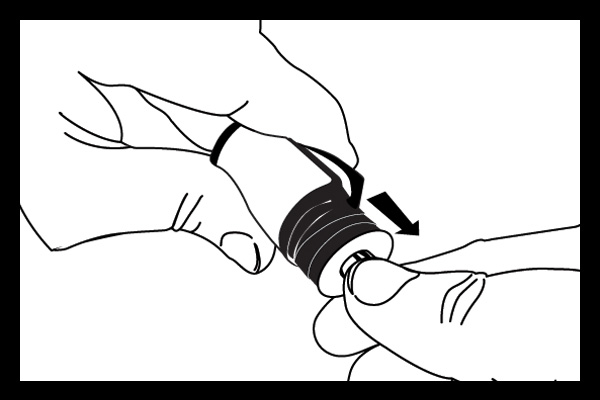

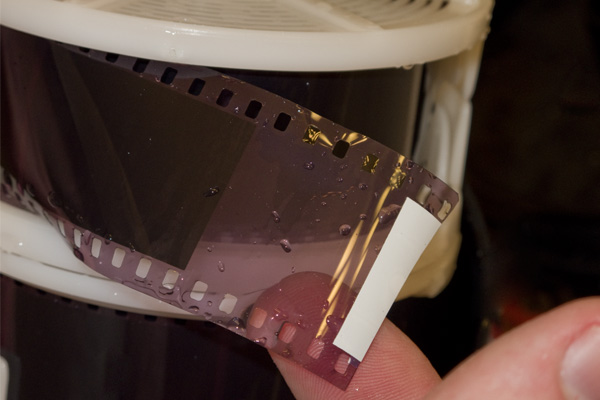

Toward the end of the reel, you will feel the plastic spindle that was used to pull the film out of the canister. It will find it’s way into your palms as you wind up your film. Take the scissors and cut this plastic spindle free and continue to load the rest of your film.
Do not pull the tape off the film, as it can cause a small amount of static that can fog your negatives. Once all your film is loaded onto reels place the reels inside your light safe tank and close it up. Be sure that it is secured and all reels are safely inside.
At this point it is safe to turn on the lights and clean up the canisters, lids spindle and discarded film that you have dropped.
Step 10: Before the Developing Process

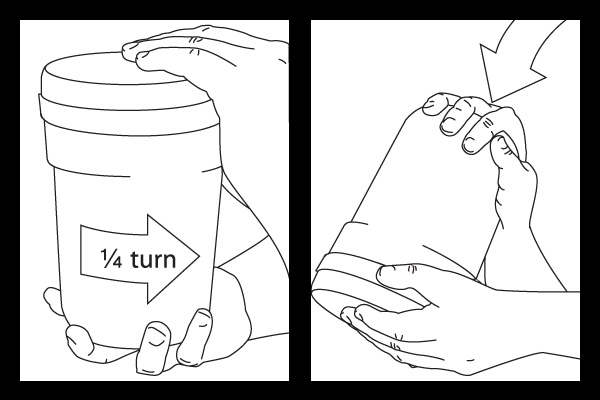

There are a few techniques that should be covered before beginning the developing process. The quarter turn and tilt agitations are an essential part of developing T-MAX. The quarter turn inversions are used to make sure that all parts of the film get exposed to the chemicals (see the image below). These inversions should take about 1 second and will be repeated several times in the process, so practicing before you start the process is advised.
Because timing of chemical baths must be precise when developing film, it is important to have all your chemicals measured out ahead of time. When one chemical has been exposed to the film for the suggested time you should be able to pour it out and have it replaced within 10 seconds.

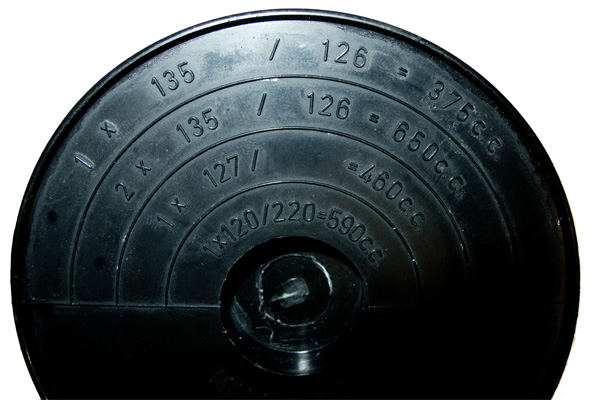

It is also important to remember that, while most developing tanks take about 20 fl. oz to cover reels, your tank may differ. Check the recommended volume of the tank before pouring chemicals. There is a guide on the bottom of most plastic developing tanks with the recommended amount of chemicals.
Step 11: T-MAX Developer

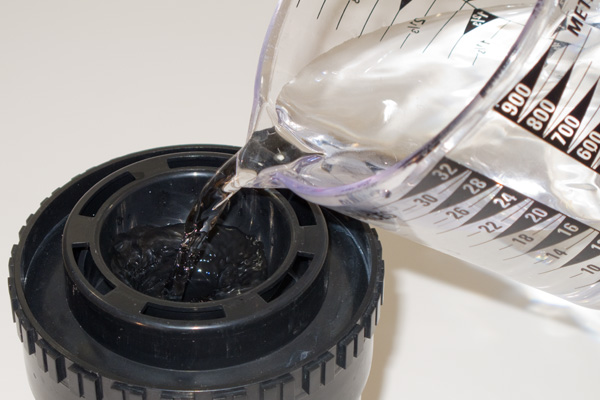

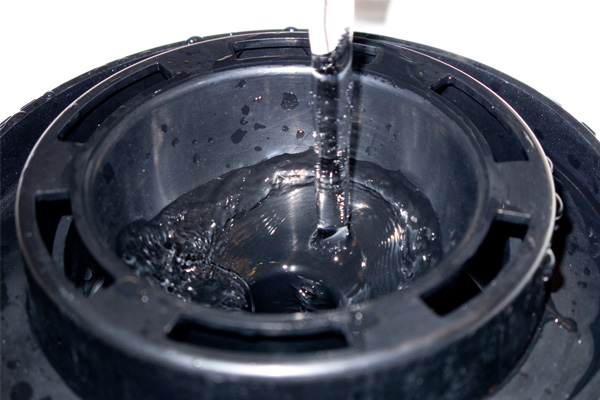

When all of the chemicals are prepared and your film is loaded in the developing tank, you are ready to start the developing process. Pour enough water to fill your tank and let your negatives soak for 1 minute.

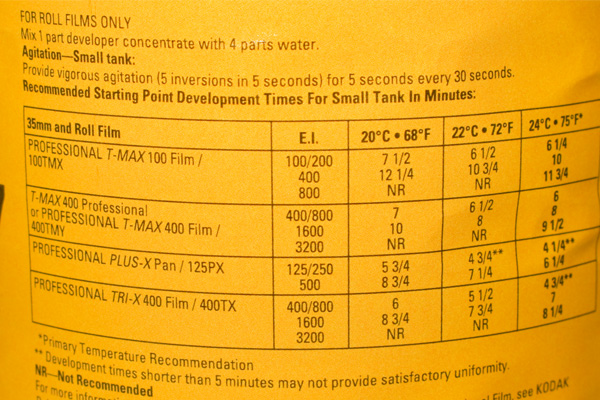

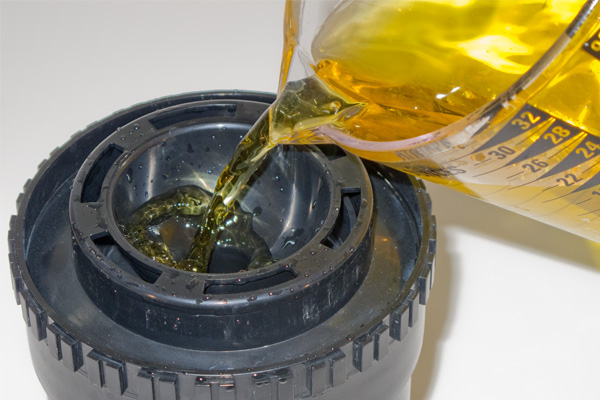

You should have already measured out the amount of developer that it takes to cover your reels. The developer should be maintained at 72° but if you are finding it difficult to do that the container has this chart. Pour out the water and pour in the T-MAX Developer.
Once your solution is poured agitate by giving your developing tank the quarter turn and tilt agitations shown in Step 10. Repeat this process 30 times in 30 seconds. Tap to the bottom of your tank, allow the tank to sit for 25 seconds. Agitate again for 5 seconds, tap the bottom again and allow to sit for 25 seconds.
This process of 5 inversions followed by 25 seconds of idleness should be repeated until the developer has had 6 1/2 to 7 minutes in the tank. Pour out and discard your developer.
Step 12: Stop Bath
Pour in 20oz of stop bath and agitate with 1/4 turn inversions for 30 seconds. Pour out and discard.
Step 13: Fixer
Pour in 20oz of fixer. Complete 3 1/2 to 8 minutes of cycles that consist of 15 one second inversions, 3 taps and 45 second rests. Once this step is complete you can open your light safe tank to observe your negatives. If your negatives appear purple and thick continue this process for another cycle and check again.
New fixer takes about 3 1/2 minutes, and as you recycle your fixer it will take up to 8 minutes to properly fix your negatives. Once your negatives are similar to the ones shown pour your fixer back into it’s container. If it takes more than 8 minutes for your negatives to clear up it is probably time for new fixer!
Step 14: One Minute Wash
Refasten the lid to your tank and give your negatives a 60 second water wash, then discard the water.
Step 15: Hypo
Use enough HCA to cover your reels. Follow by 1 full minute of full agitation (1 second 1/4 turn inversions). Hypo can be recycled, but it is difficult to tell when the mixture is getting weak.
Step 16: Five Minute Running Water Wash

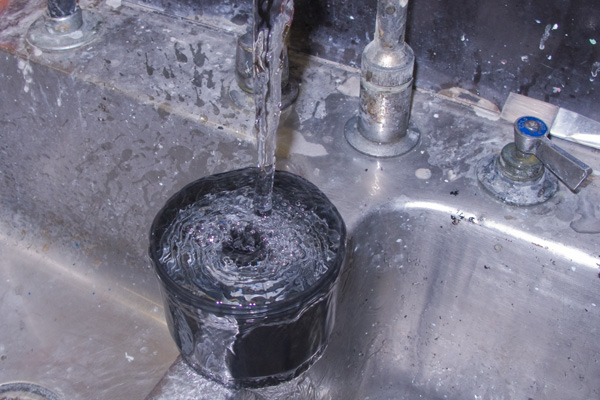

Give your negatives a 5 minute running water wash. Remove light safe lid and let water pour directly onto the reels.
Step 17: Photo Flo

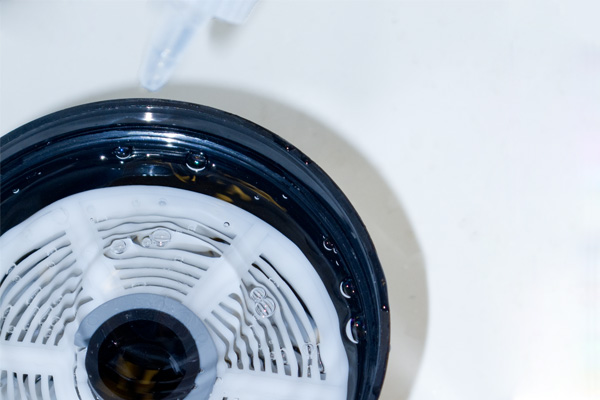

Toward the end of the water wash apply 2 drops of Photo Flo. Rotating your negatives in this solution helps to distribute the Photo Flo.
Step 18: Drying and Hardening

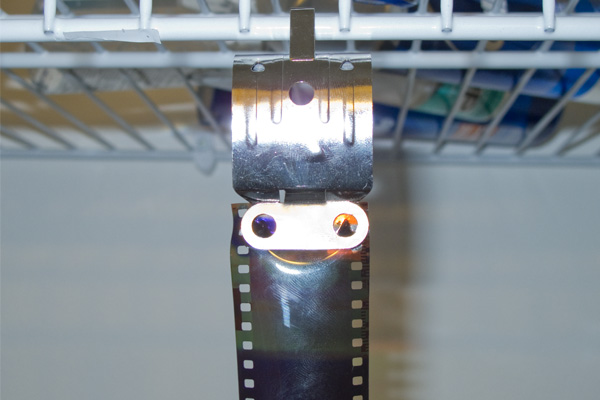

Remove the negatives from their reels and hang them in a clean dust free area. Do not touch the negatives with dry fingers, but wet your hands in Photo Flo solution and lightly run fingers along drying film to remove excess water. Negatives should be given at least 2 hours before you touch them again.
Step 19: Cutting and Archiving Your Negatives

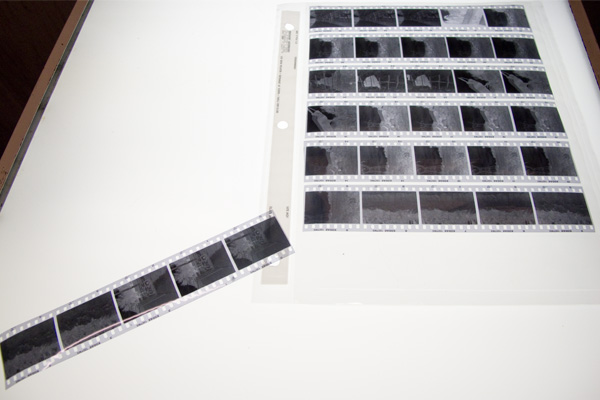

Once you have your negatives, you will probably want to put them into a archival sleeve whether you are using an enlarger to make a contact sheet and prints later, or you are just scanning them to a digital format.
I use Print File’s Contact proofing preserver because I like to store the contact sheet right on top of the negatives for easy proofing. You will probably cut after either every 5 frames or 6 frames depending on the negative preserver.
Step 20: Examine Your Negatives
It helps if you have access to a light table here, but you can just as easily hold your negatives into any light source to examine them. A well developed negative has both areas that are fully thick but still has areas where the negative is completely transparent.
Thin negatives will result in very gray prints concentrated in the mid tone range, whereas overly thick negatives will result either in prints that are too light and lack detail or gray negatives that appear blurry and fogged.
Inspect the negatives for watermarks, scratches and dust. Scratches to the emulsion side of the film are very difficult to fix. Dust and watermarks are easily removed with an anti-static or micro-fiber cloth (be careful to use clean lintless fabric that is free of grit or dirt they will scratch your negatives).
Well Exposed Negatives
Here is an example of a well developed film. Notice there are areas where the film is comply transparent and there are areas where the negative is completely black. This will result in a print with a full tonal range.
If your negatives are thin, you underexposed. If you have negatives similar to these you will end up having a print that is gray and muddy. In the printing process you can try to fix this with high contrast filters that but overall you will end up loosing a lot of the grayscale. There values look unnatural compared with that of a well exposed negative.
If your negatives are too thick, you overexposed. While slightly overexposed images have higher contrast prints overall you will loose a few mid-tones. Overly thick negatives will give you a gray print, but unlike underexposed negatives there will be a lot more dark tones. If a negative is very thick, reciprocity failure becomes an issue (this negative is also slightly fogged).
Undeveloped Portions of Your Negative
In this case your film came off the track when were loading the reels. It is rare to have this happen with plastic reels but if metal reels are used it is a more common mistake. If you continue to have these results try practicing with an exposed roll of film with the lights on.
If the negatives were exposed to any source of light, it is visible in the areas of darker tones (where the negatives should be transparent). Indirect or reflected light that is a result of a poorly light-proofed room can be harder to detect.
Look at the edges of the negative. If you see patterns similar to those below it is possible that the room where the film was put onto the reels was not entirely lightproof. Fogged negatives will result in a loss of lighter tones and overall result in darker more muddy prints
Though the idea of developing your own negatives certainly sounds a little daunting, it’s a great experiment to try and certainly gives you a better understand of how photography works. There’s a huge satisfaction to handling your own images from the initial shoot, through to a finished negative!
